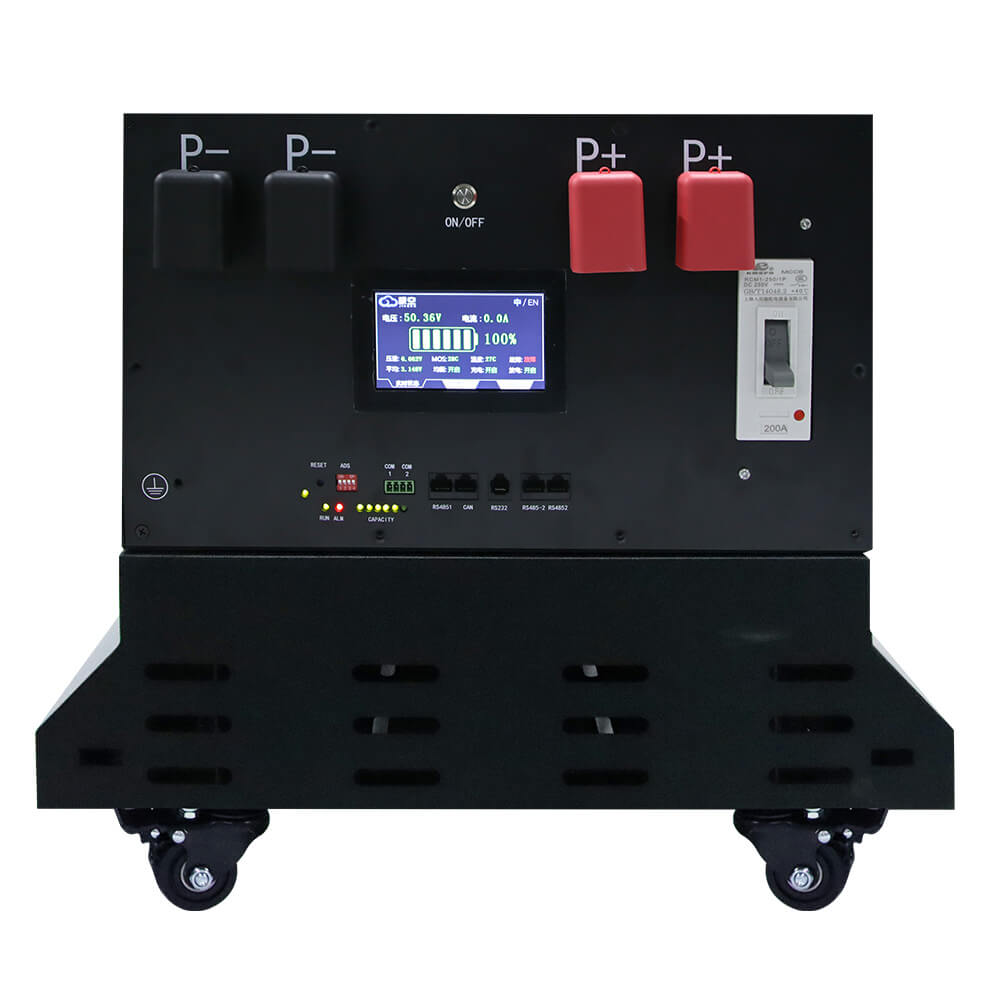

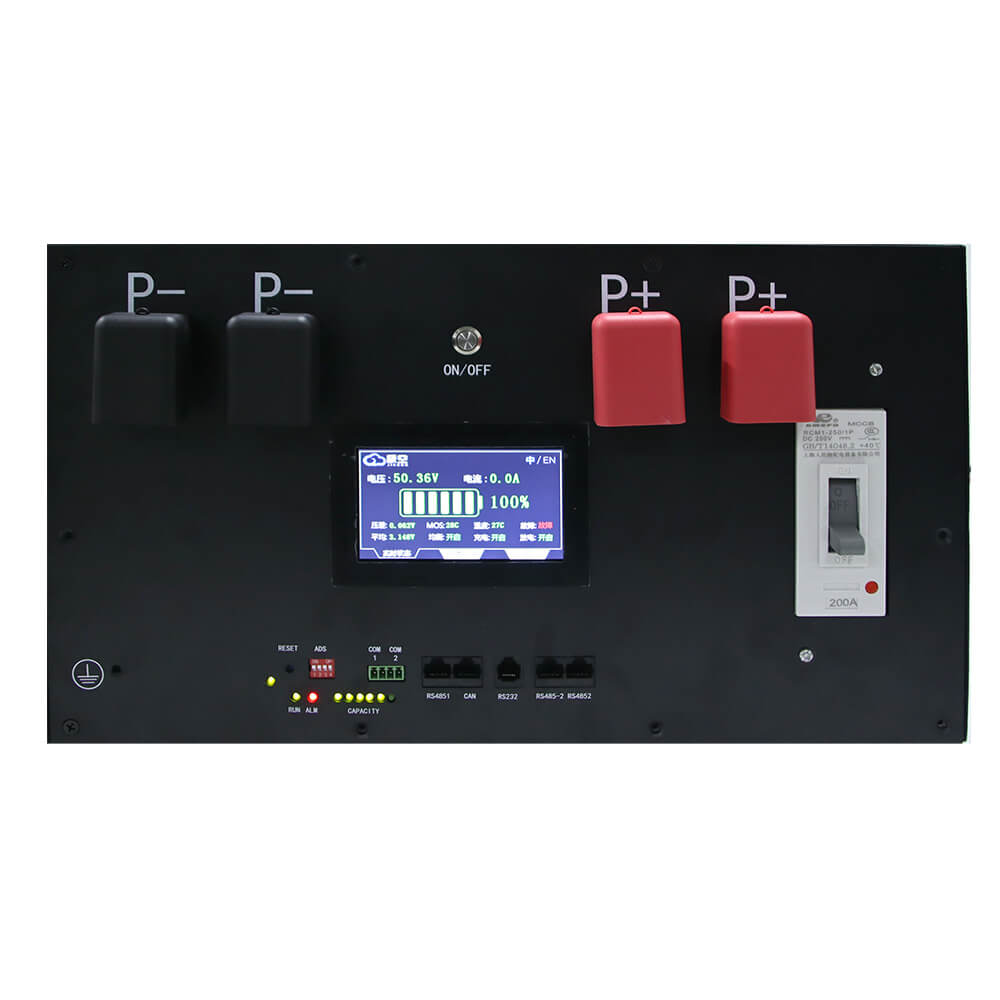

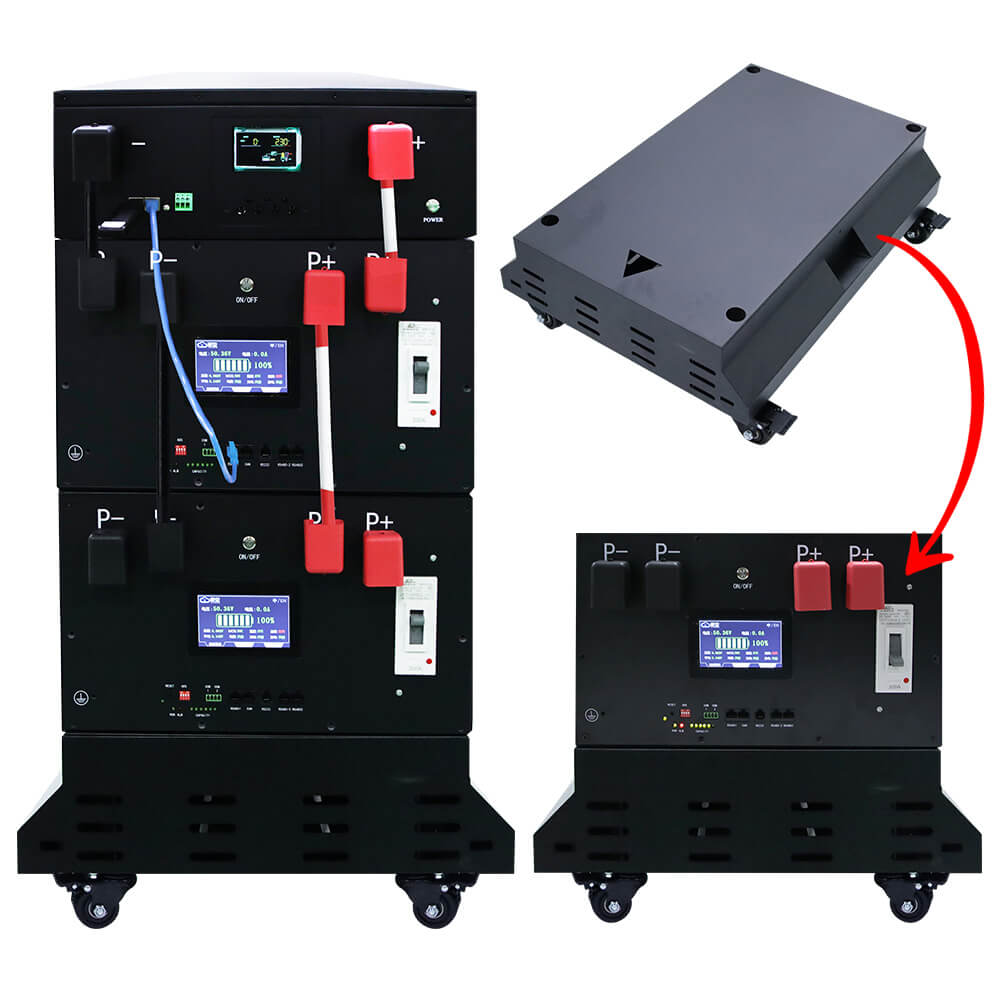

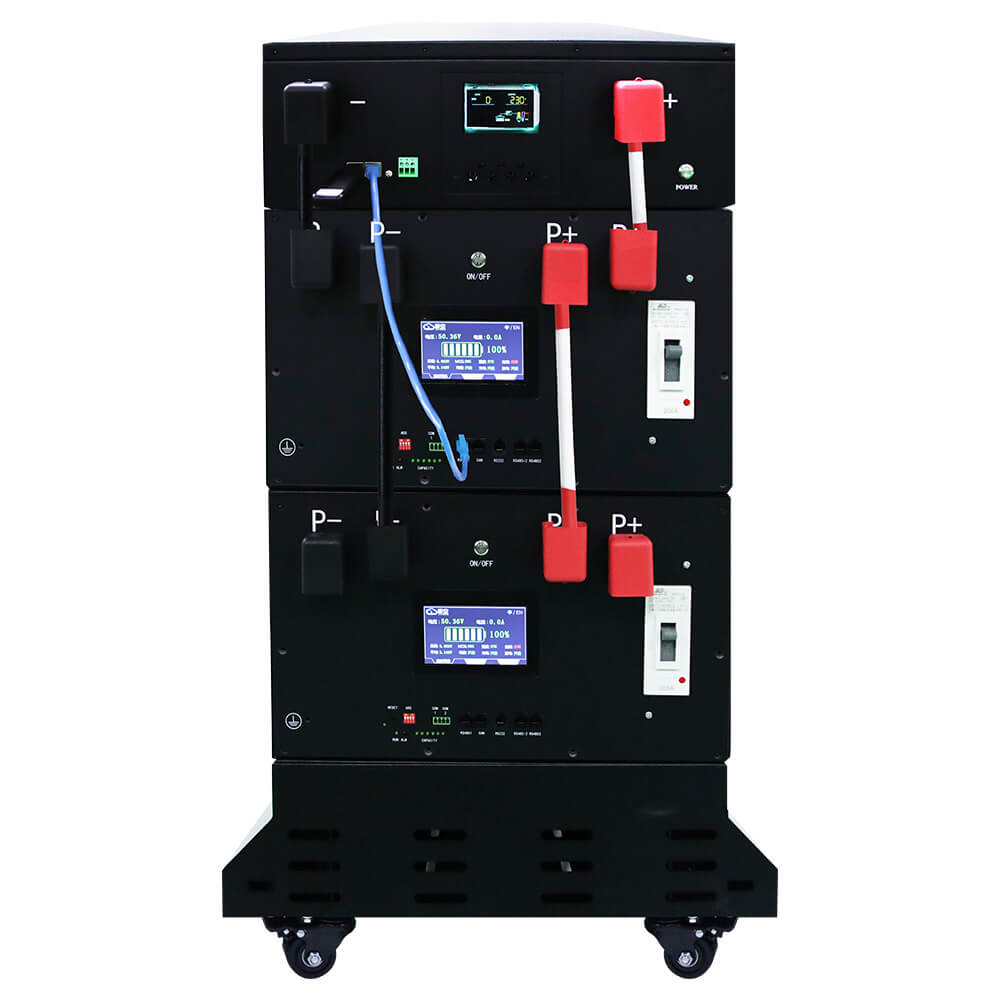

IMREN Stacked Household Energy Storage

Product Features
1. Supports AC charging, input voltage range: 90 - 280VAC.
2. Powered by single-cell lithium-iron-phosphate battery, supports 230AH, 280AH, 304AH, 314AH batteries.
3. Supports solar charging, built-in 300W MPPT charging module.
4. PV input voltage: 11 - 55Vdc
5. AC output 2 channels, maximum power 500W, sine wave, 50Hz
6. Protection functions: overcurrent, overvoltage, short circuit, overtemperature
7. Supports UPS function, switching time 20mS
8. Supports 2 DC5521 output terminals, 12V, 4A
9. Supports 1 Type-C power 20W, supports fast charging protocols: QC 2.0/QC 3.0/QC 3.0+Class A Huawei FCP/SCP Samsung AFC Apple 2.4A PD3.1
10. Supports 2 USB power 20W, supports fast charging protocols QC 2.0/QC 3.0/QC 3.0+Class A Huawei FCP/SCP Samsung AFC Apple 2.4A PD3.1
11. Supports 1 touch dimming camping lamp (reserved function)
12. Supports LED battery level display
13. Certification: meets UL/IEC/EN62368

Parameter	DC48-6000/(S)	DC48-11KW/(S)
AC Output Voltage	230V	230V
AC Output Power	6000W	11KW
AC Output Frequency	50/60Hz	50/60Hz
Waveform	pure sine wave	pure sine wave
Voltage	48Vdc	48Vdc
Constant charging voltage (adjustable)	56.4V	56.4V
Floating charging voltage (adjustable)	54V	54V
PV charging mode	MPPT	Dual MPPT
Maximum input power of PV	6000W	2*5500W
MPPT tracking range	60~500Vdc	90~500Vdc
Optimum Voltage	300~400Vdc	300~400Vdc
Maximum photovoltaic charging current	100A	150A
Maximum charging current for communication	100A	150A
Parallel connection interface	No/Parallel	No/Parallel
operating temperature	-10~50℃	-10~50℃
Size	750*440*150(mm)	750*440*150(mm)
Weight	21Kg	24Kg
